Yamaha T-Max 530 2015-2020 / t-max 560 2020+ Galfer big brake kit KG4983FS
This set will only fit with the face lift model with normal front fork and not on the 2012 – 2014 models with upside down front fork.
On the 2015+ models with normal front forks, the brake callipers are mounted directly on the front forks.
And with the 2012-2014 model, the calipers are mounted on the front fork with a bracket, so this set does not fit on this model.

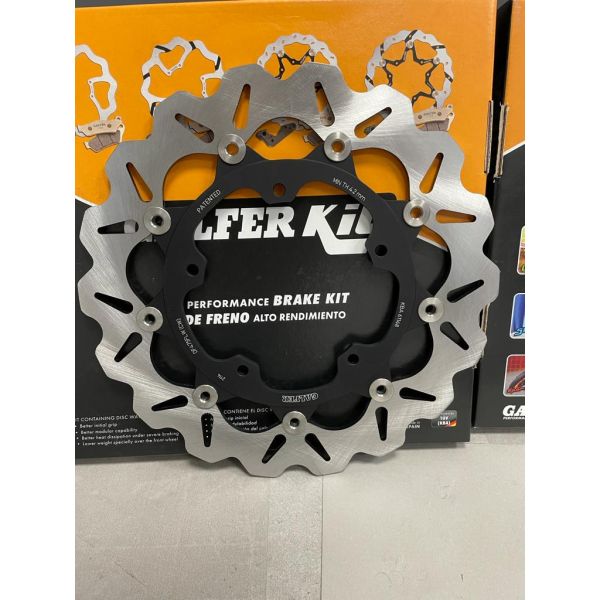

The Galfer wave front discs are a lot larger than the original discs (320mm)
Through this kit, the brake strenght will increase.
This set comes with bushings with longer bolts so that the calipers come back slightly and fit with the larger discs.

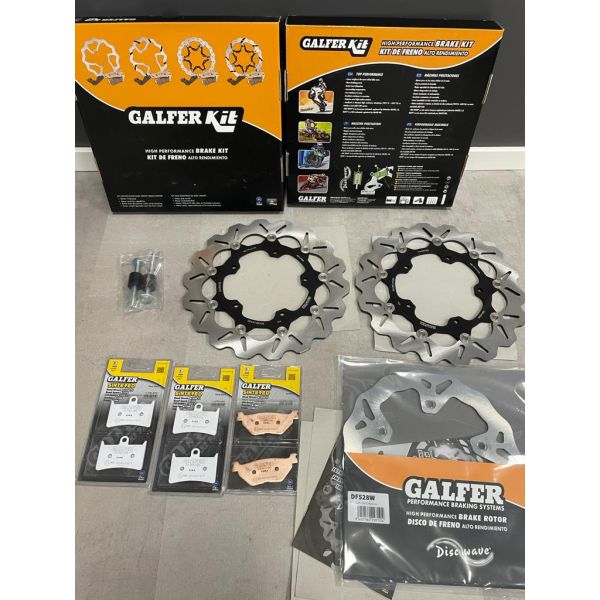

2x Galfer wave for brake discs 320mm DF475CW
2x Galfer sintered front brake pads FD178G1375
1x Galfer rear disc 282mm DF528W
1x Galfer sintered rear brake pads FD260G1380
2x Galfer fitting kit SP498
If you have any questions, please don’t hesitate to contact us.
